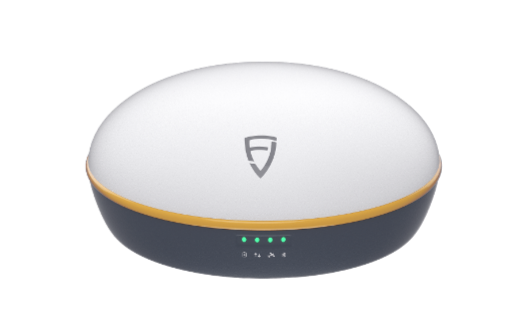

FJD V1 Base Station

$3,500.00

Portable RTK base station providing radio correction signals for centimeter‑level positioning in the field.

Key Features:

  • Tripod‑mount portable design

  • Radio RTK corrections for FJD and compatible rovers

  • Supports multi‑constellation GNSS

Portable RTK base station providing radio correction signals for centimeter‑level positioning in the field.

Key Features:

  • Tripod‑mount portable design

  • Radio RTK corrections for FJD and compatible rovers

  • Supports multi‑constellation GNSS

  • Global Constellation Coverage

    Multi-constellation/multi-frequency GNSS for reliable positioning.

  • Wide Work Range

    ~5 km typical with internal radio; up to 30 km with external radio (optimal conditions).

  • Long Battery Life

    Up to 10 hours in base-station mode; supports external power for extended use.

  • IP67 & Durable

    ~1 kg portable design; IP67 rated and 1.5 m drop-tested for field work.

V1 Base Station work range illustration
Internal vs. external radio reach for broad coverage.
V1 Base Station battery and power options
10h internal battery; supports external power.

Specifications

Channels
965
GNSS
GPS, BDS-2/3, GLONASS, Galileo, QZSS, SBAS, IRNSS, L-band
Accuracy (RTK)
H: 8 mm + 1 ppm RMS; V: 15 mm + 1 ppm RMS
Data Formats
RTCM 2.x / 3.x, NMEA-0183
Radio Protocols
TRIMTALK, TRIMARK III, TT450S, TRANSEOT, Satel 3AS 4FSK
Frequencies
410–470 MHz; 840.5–845 MHz & 902–928 MHz
Work Range
~5 km typical (up to ~30 km with external radio)
Ruggedness
IP67; 1.5 m drop test; ~1 kg

Specs summarized from FJD’s V1 materials; verify exact kit details.
