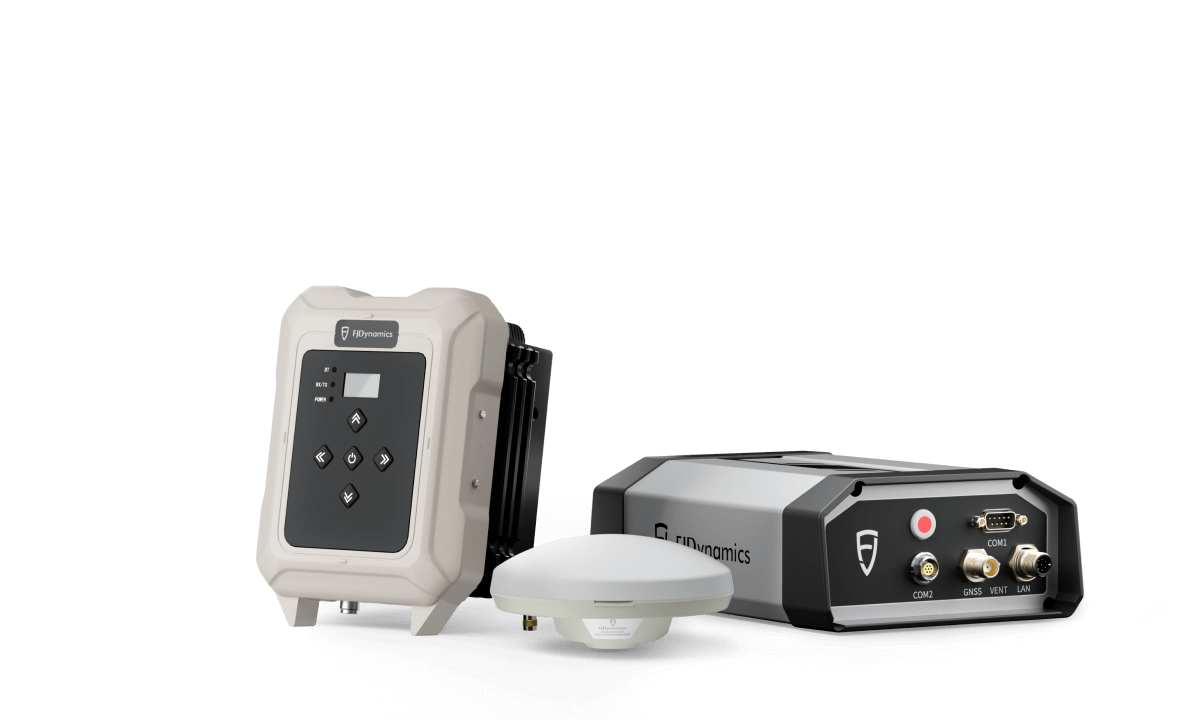

FJD N20 Fixed High Power GNSS Station

$8,000.00

Fixed, high‑power GNSS RTK reference station for farms/estates requiring wide‑area coverage.

Key Features:

  • Multi‑satellite, multi‑frequency operation

  • Centimeter‑level RTK; wide coverage (up to ~30 km per official specs)

  • Designed for continuous on‑farm infrastructure

Fixed, high‑power GNSS RTK reference station for farms/estates requiring wide‑area coverage.

Key Features:

  • Multi‑satellite, multi‑frequency operation

  • Centimeter‑level RTK; wide coverage (up to ~30 km per official specs)

  • Designed for continuous on‑farm infrastructure

  • Multi-Satellite, Multi-Frequency

    Tracks GPS, BDS, GLONASS, Galileo, and QZSS for cm-level RTK positioning.

  • Easy Configuration

    Three modules install quickly; setup via wireless hotspot for fast parameter changes.

  • Interference Detection

    Built-in scan locates interference points so channels can avoid noisy bands.

  • Wide Signal Coverage

    High-power radio with selectable power modes; up to ~30 km coverage in ideal conditions.

  • Extensive Compatibility

    External radio supports TRANSEOT, TRIMTALK, TRIMMK3, SATEL, ETALK (32-channel).

  • All-Weather Operation

    IP67 rating and wide temperature range for 24/7 field use.

N20 GNSS base and radio with farm equipment
Reference station concept with tractors and implements.
Wide coverage illustration up to 30 km
High-power radio coverage up to ~30 km (ideal conditions).
Base station and tractor with management UI
Manage station settings and modes via hotspot.
GNSS signal flow illustration
Multi-constellation, multi-frequency reception for stability.

Specifications

Constellations / Bands
BDS B1I/B2I/B3I/B1C/B2a; GPS L1C/A/L2P(Y)/L2C/L5; GLONASS L1/L2; Galileo E1/E5a/E5b; QZSS L1/L2/L5
Single-Point Accuracy (RMS)
H: 1.5 m; V: 2.5 m
RTK Accuracy (RMS)
H: 0.8 cm + 1 ppm; V: 1.5 cm + 1 ppm
Static PP (RMS)
H: 2.5 mm + 1 ppm; V: 5.0 mm + 1 ppm
Transmit Method
Radio, Network
Protocols
NMEA-0183, RTCM 2.x/3.x
External Radio
410–470 MHz; broadcasts RTCM; 32-channel protocols (TRANSEOT, TRIMTALK, TRIMMK3, SATEL, ETALK)
Update Rate
Up to 1 Hz
Operating Temp
−40 °C to +65 °C
Storage Temp
−40 °C to +80 °C
Ingress Protection
IP67 (receiver, radio, antenna)
Power
DC 9–16 V; ~95 W total (≈10 W receiver + 85 W radio)

Verify exact configuration (region/protocols) with your dealer.
