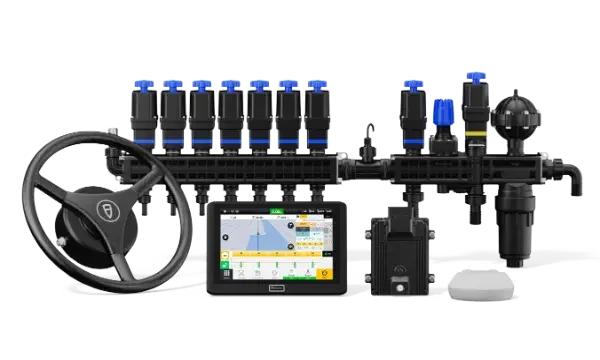

FJD ATS Precision Spray Autosteering System

$0.00

Integrated spraying + autosteering solution that controls sections and flow rate to minimize overlap/overspray while following precise paths.

Key Features:

  • Auto section control and individual nozzle control

  • Consistent rate application with speed compensation

  • Variable‑rate application (VRA)

  • Seamless mode switching (manual / semi‑auto / auto)

  • ISOBUS compatibility and spray data recording

Integrated spraying + autosteering solution that controls sections and flow rate to minimize overlap/overspray while following precise paths.

Key Features:

  • Auto section control and individual nozzle control

  • Consistent rate application with speed compensation

  • Variable‑rate application (VRA)

  • Seamless mode switching (manual / semi‑auto / auto)

  • ISOBUS compatibility and spray data recording

  • Consistent Rate Application

    Flow adjusts to vehicle speed to keep the target rate across the boom.

  • Automated Section Control

    Sections start/stop automatically at boundaries to cut overlap and skips.

  • Individual Nozzle Control

    PWM-based control supports fine, per-nozzle dosing and quick response.

  • Variable-Rate Application (VRA)

    Apply different rates by zone, map or prescription to match field conditions.

  • Seamless Mode Switch

    One-touch switch among manual, semi-auto and auto spray/flow modes.

  • Autosteering-Driven Paths

    2.5 cm path planning minimizes overlap; accurate up to ~26 km/h.

Consistent application at different speeds
Consistent rate as speed changes.
Automatic section control in the field
Auto section control at boundaries.
Table showing manual, semi-auto and auto spray/flow modes
Manual ↔ Semi-auto ↔ Auto modes.
2.5 cm path spacing planning
2.5 cm path planning with RTK.

Specifications

Control Terminal
275 × 180 × 40 mm; 10.1" 1280×800 (≈700 nits); 9–36 V; IP65; −20 °C to 70 °C; Wi-Fi 2.4 GHz; Type-C ×2; SIM ×1.
GNSS Receiver
162 × 64.5 mm; GPS L1/L2/L5, GLONASS L1/L2, BDS B1/B2/B3 (incl. B1C/B2a), Galileo E1/E5a/E5b, QZSS L1/L2/L5; SBAS; 9–36 V; IP66.
Electric Steering Wheel
410 × 410 × 135 mm; 12/24 V; 20 N·m (12V) / 30 N·m (24V); IP65.
Integrated Valve
12 V; 1.0–12 bar; to 200 L/min; 1–7 boom section valves; 20 bar pressure resistance.
Spray Controller
12/24 V; valve drive 3A/12V; pressure 0–10 V / 0–20 mA; flow 0–10 kHz; CAN; IP67.
Accuracy & Speed
Row spacing planned to ~2.5 cm with RTK; operations up to ~26 km/h.

Specs and capabilities summarized from the official ATS product & specs pages; bundle contents vary by region.
