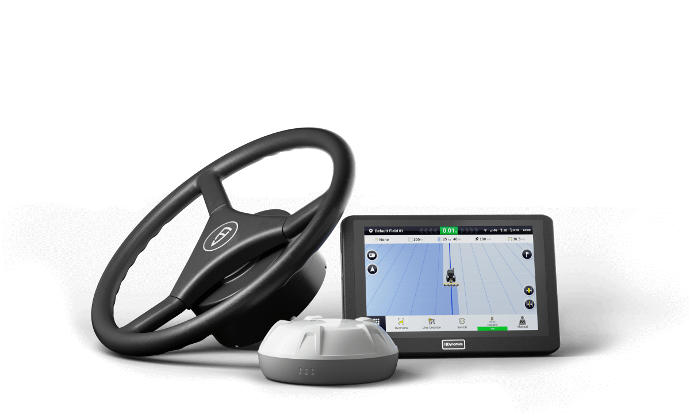

FJD AT2 Auto Steer System

FJD AT2 Auto Steer System

$12,500.00

Proven GPS+RTK autosteering kit delivering 2.5 cm pass‑to‑pass accuracy across all terrains; reduces skips/overlaps and supports night operations.

Key Features:

Multiple guidance lines: A-B, A+, curves, pivot, tramlines
Smart and basic U-turn (Ω/fishtail), headland & diagonal modes
ISOBUS compliant (UT/TC functions)
Terrain compensation and GIS line import/export

Quantity:

Proven GPS+RTK autosteering kit delivering 2.5 cm pass‑to‑pass accuracy across all terrains; reduces skips/overlaps and supports night operations.

Key Features:

Multiple guidance lines: A-B, A+, curves, pivot, tramlines
Smart and basic U-turn (Ω/fishtail), headland & diagonal modes
ISOBUS compliant (UT/TC functions)
Terrain compensation and GIS line import/export

RTK‑Level Accuracy

Up to ~2.5 cm pass‑to‑pass precision with supported corrections.
Smart Path Planning

AB straight/curve, headlands, tramlines, line groups, pivot, and more.
Automatic U‑turn

Plans optimal turns at row ends; supports Ω/fishtail shapes where space is tight.
ISOBUS Support

Operate implements via VT/TC on one terminal.

Path examples (straight, curve, complex).

Specifications

Accuracy: Up to ±2.5 cm (RTK)
Guidance Modes: AB straight/curve, headland, pivot, tramline
Steering: Electric motor / hydraulic (steer‑ready)
Display: Touch UI (model dependent)

GNSS: GPS / GLONASS / BeiDou / Galileo*
Corrections: RTK / NTRIP / PPP / SBAS
Power: 12V DC
Operating Temp: -20°C to 60°C

*Capabilities vary by receiver; verify exact specs for your kit.
