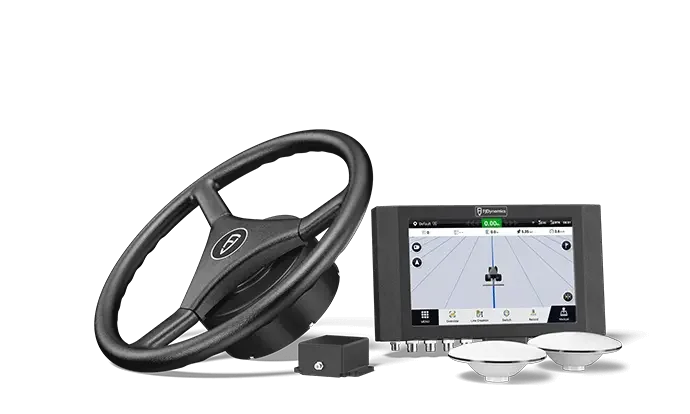

FJD AT1 Autosteering Kit

$0.00

Electric‑motor steering wheel retrofit kit that brings hands‑free autosteering to a wide range of tractors at 2.5 cm accuracy.

Key Features:

  • Motor‑driven steering wheel retrofit

  • 2.5 cm pass‑to‑pass accuracy with RTK

  • Smart U‑turn and multiple guidance lines

  • Broad tractor compatibility; quick install

Electric‑motor steering wheel retrofit kit that brings hands‑free autosteering to a wide range of tractors at 2.5 cm accuracy.

Key Features:

  • Motor‑driven steering wheel retrofit

  • 2.5 cm pass‑to‑pass accuracy with RTK

  • Smart U‑turn and multiple guidance lines

  • Broad tractor compatibility; quick install

  • ±2.5 cm Pass-to-Pass Accuracy

    GNSS + RTK guide straight, curve, pivot, and A+ lines for consistent rows.

  • Advanced Guidance Lines

    Choose the best line type for irregular fields and operation needs.

  • Terrain Compensation (IMU)

    Keeps paths straight on slopes and uneven terrain.

  • ISOBUS Control (UT)

    Operate compatible implements directly from the FJD terminal.

  • GIS Info Transfer

    Move field boundaries/lines via USB in SHP/ISOXML for teamwork.

  • One-Person Install + U-turns

    Quick setup; supports Smart U-turn and Basic Ω/fishtail turns.

Guidance lines and satellite correction
RTK guidance for precise row spacing.
Field management on FJD terminal
Manage fields, tasks, and boundaries.
Straight, curve, pivot, A+ guidance options
Pick straight, curve, pivot, or A+ lines.
Terrain compensation keeps lines straight on slopes
IMU keeps lines true on slopes.

Specifications

Display & Control Terminal
10.1" LCD (1280×800) with LED backlight; size 300×190×43 mm; IP67; 10–30 V; 4G (2G/3G compatible); operating −30 °C to 70 °C.
Electric Steering Wheel
370×370×123 mm; max torque 30 N·m; 12/24 V; operating −20 °C to 70 °C.
RTK Accuracy
±2.5 cm pass-to-pass (with RTK corrections).
GNSS Antenna Bands
GPS L1C/A, L1C, L2P(Y), L2C, L5; GLONASS L1/L2; BDS B1I/B2I/B3I/B1C/B2a; Galileo E1/E5a/E5b; SBAS (WAAS/EGNOS/MSAS). Operating −20 °C to 70 °C.
Corrections
NTRIP via 4G antenna or RTCM via radio antenna (base station).
File Types
USB transfer of SHP (SHP/SHX/DBF) and ISOXML for GIS & implement data.

Specs & features summarized from the official AT1 product and specs pages.
