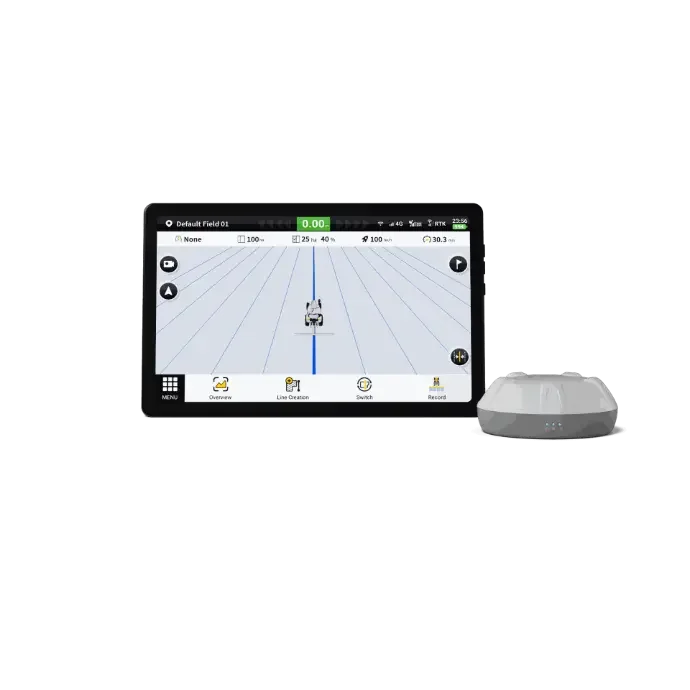

FJD AG1 Guidance System

$3,500.00

Description: Entry‑level GNSS guidance for manual steering that supports PPP, RTK, SBAS and can be upgraded to autosteering; optional wireless ISOBUS.

Key Features:

  • Precision from decimeter‑level to 2.5 cm with RTK

  • Multiple guidance lines; line sharing and adjustment

  • Wireless ISOBUS VT/TC/AUX option

  • Remote data management via Farm Management System

  • Simple, modular installation

Description: Entry‑level GNSS guidance for manual steering that supports PPP, RTK, SBAS and can be upgraded to autosteering; optional wireless ISOBUS.

Key Features:

  • Precision from decimeter‑level to 2.5 cm with RTK

  • Multiple guidance lines; line sharing and adjustment

  • Wireless ISOBUS VT/TC/AUX option

  • Remote data management via Farm Management System

  • Simple, modular installation

  • Manual Guidance, RTK-Ready

    Entry-level guidance with PPP/SBAS at no cost and upgrade path to RTK (~2.5 cm) when needed.

  • Multiple Guidance Lines

    Straight, curve, pivot, A+ and line groups; adjust and share lines between tractors.

  • Wireless Setup

    Display + GNSS receiver connect via Wi-Fi for simple installation and fewer cables.

  • ISOBUS Capability

    Optional VT/TC/AUX to monitor and control compatible implements.

  • Implement Retrofit

    Optional VCU kit adds ISOBUS control to non-ISOBUS sprayers.

  • Remote Data & FMS

    Integrates with Farm Management System for tasks, boundaries and records.

AG1 guidance with PPP/SBAS/RTK options over a field
Multi-source accuracy: PPP, SBAS and RTK options.
Diverse guidance line types
Choose straight, curve, pivot, A+ and more.
Guidance line adjustment in the field
Fine-tune lines and share across machines.
Wireless ISOBUS monitor controlling planter
Optional wireless ISOBUS monitor and control.

Specifications

Guidance Terminal
~10–10.36" FHD (≈2000×1200), Android, 8-core 2.0 GHz, BT 5.0, Wi-Fi 2.4/5 GHz.
Battery ≈6000 mAh; USB-C; SIM+SIM or SIM+TF (kit dependent).
Memory: 4 GB+64 GB or 6 GB+128 GB (varies by kit revision).
GNSS Receiver
162 × 64.5 mm; GPS L1/L2/L5, BDS B1/B2/B3, GLONASS L1/L2, SBAS.
9–36 V; −20 °C to 70 °C; IP67.
ISOBUS Module (optional)
CAN; 9–36 V; −30 °C to 70 °C; IP67.
VCU Kit (optional)
9–36 V; pressure signal 0–10 V / 0–20 mA; flow 0–10 kHz; CAN; IP67.
Accuracy Options
PPP/SBAS (decimeter-level) or RTK (~2.5 cm) with network or base station.

Specs and options vary by bundle/region; confirm with your dealer.
